Laser Survey
Banff-AL equipped with a laser module, provides centimeter-level accuracy within 10 m range.

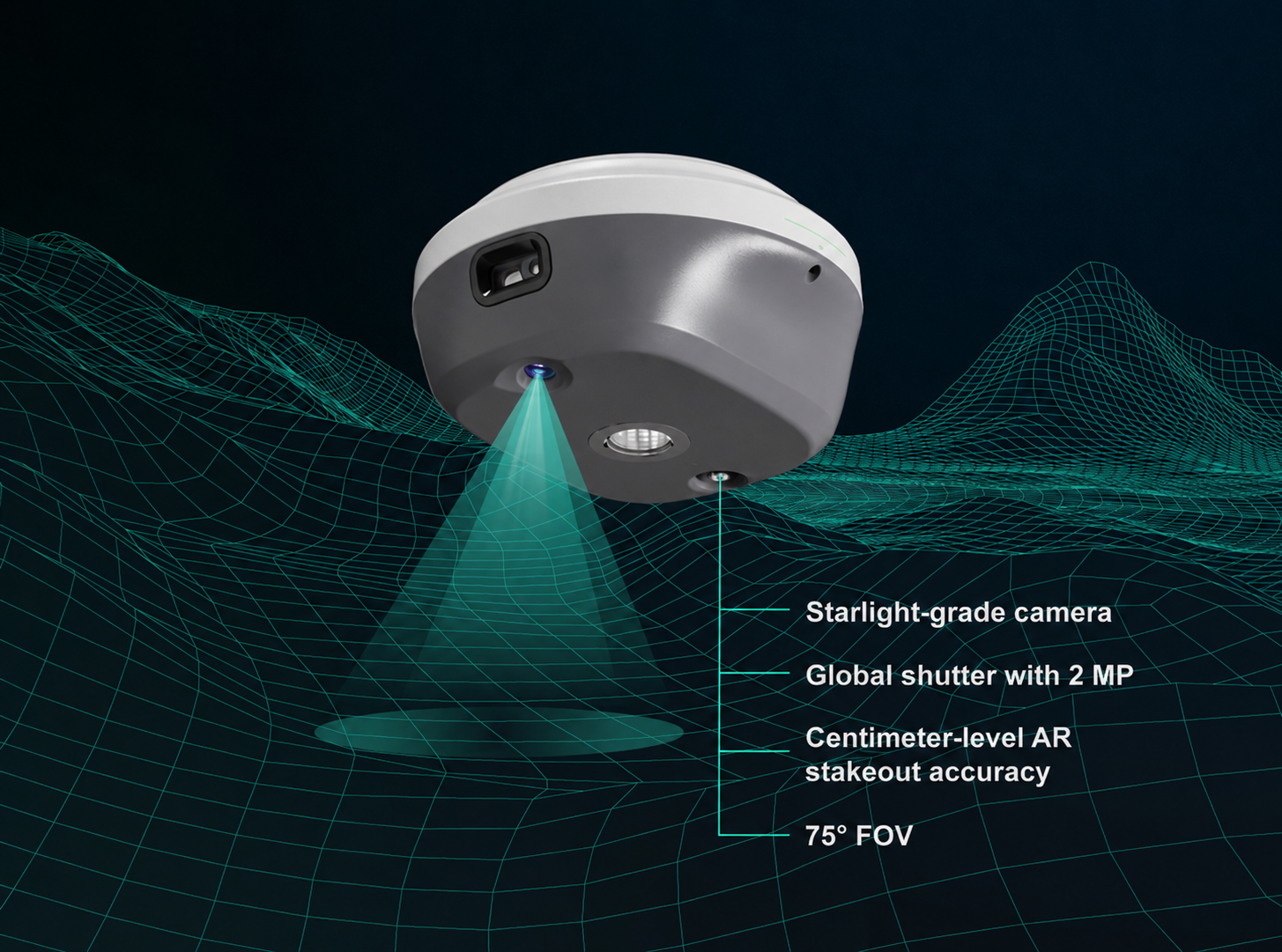

Visual Stake Out with Camera
Banff-AL equipped with a 2 MP starlight-grade camera offers visual stake out, supporting centimeter-level AR guidance with a 75 degree field of view for accurate results.

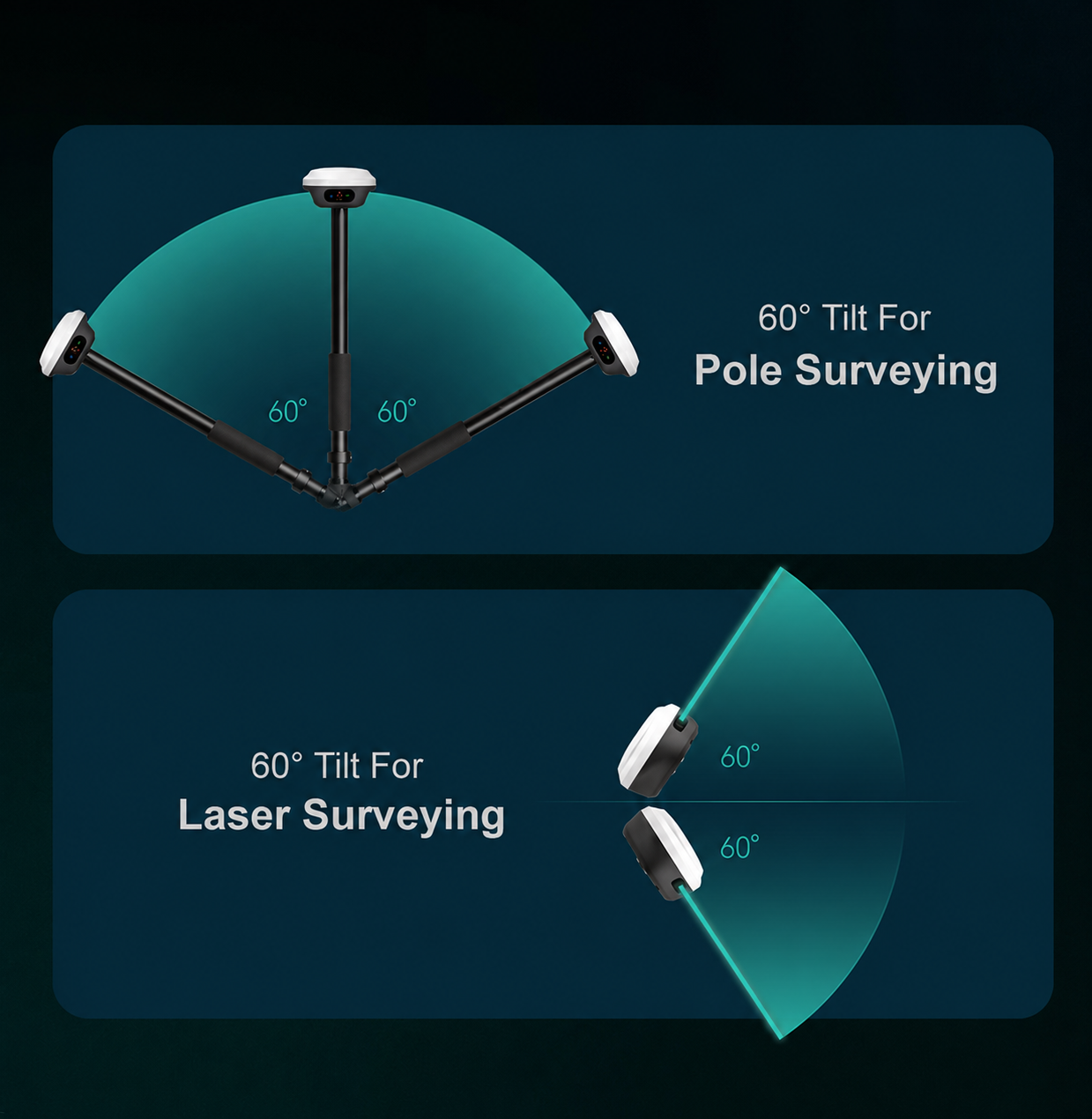

60° Tilt IMU
High performance IMU, supporting up to 60 degree tilt range for both pole surveying and laser surveying.

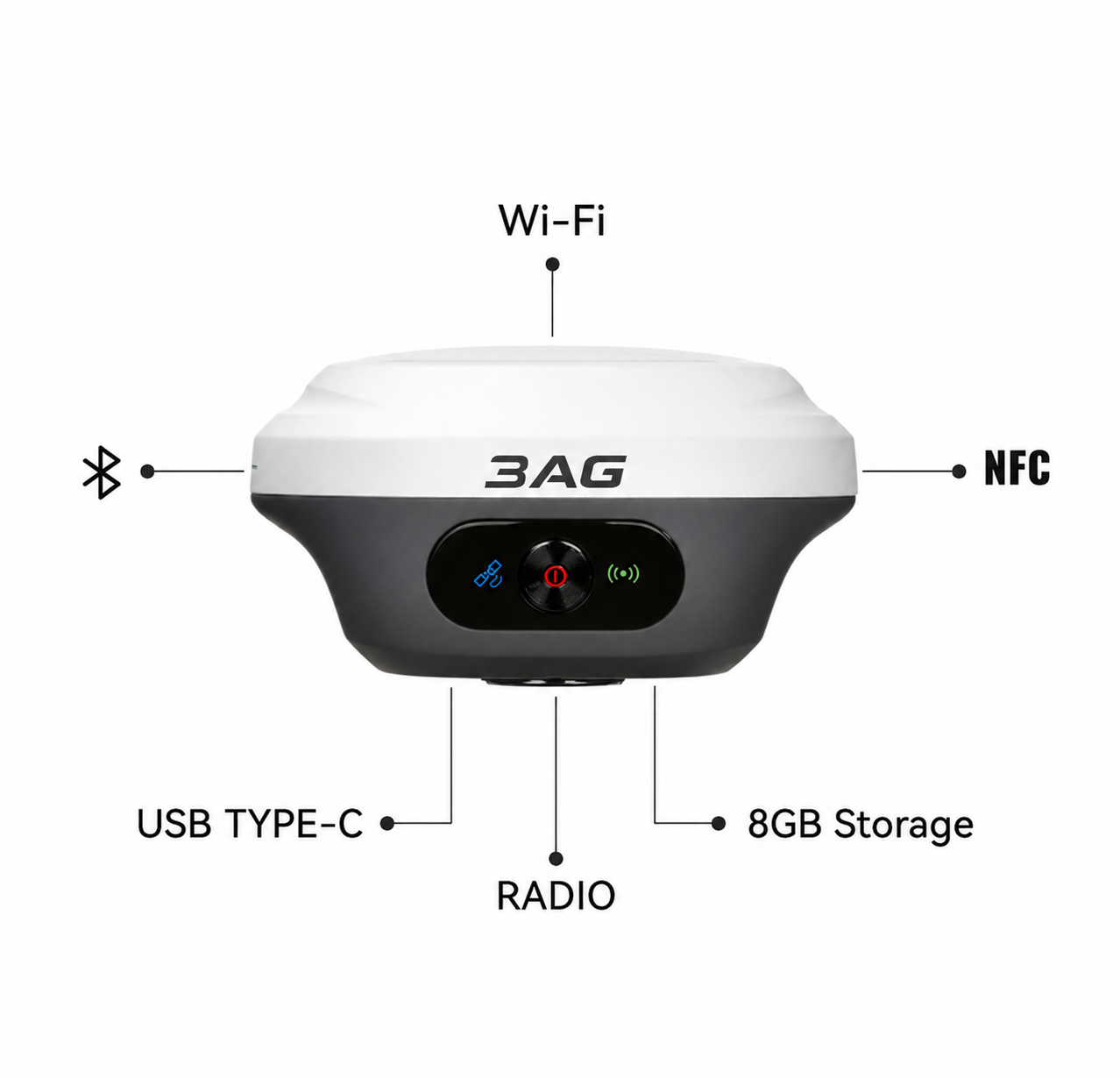

Transmition
Integrated NFC, Bluetooth, WiFi, USB Type-C and 8 GB storage.

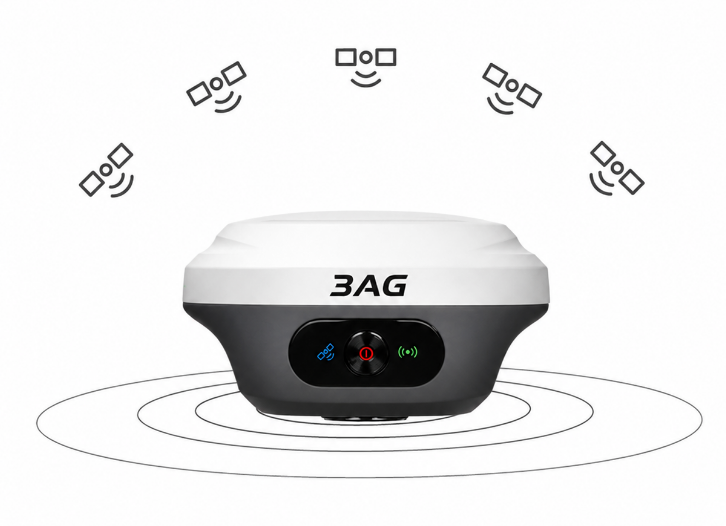

Constellation
Supporting full constellation GPS, GLONASS, Galileo, BeiDou, IRNSS (NavIC), QZSS.
Specifications
Technical detail.
- Channels
- 1408
- BDS
- B1I, B2I, B3I, B1C, B2a, B2b
- GPS
- L1C/A, L1C, L2C, L2P(Y), L5
- GLONASS
- G1, G2, G3
- Galileo
- E1, E5a, E5b, E6
- QZSS
- L1C/A, L1C, L2C, L5
- RTK Accuracy
- 8mm+1ppm Horizontally, 15mm+1ppm Vertically
