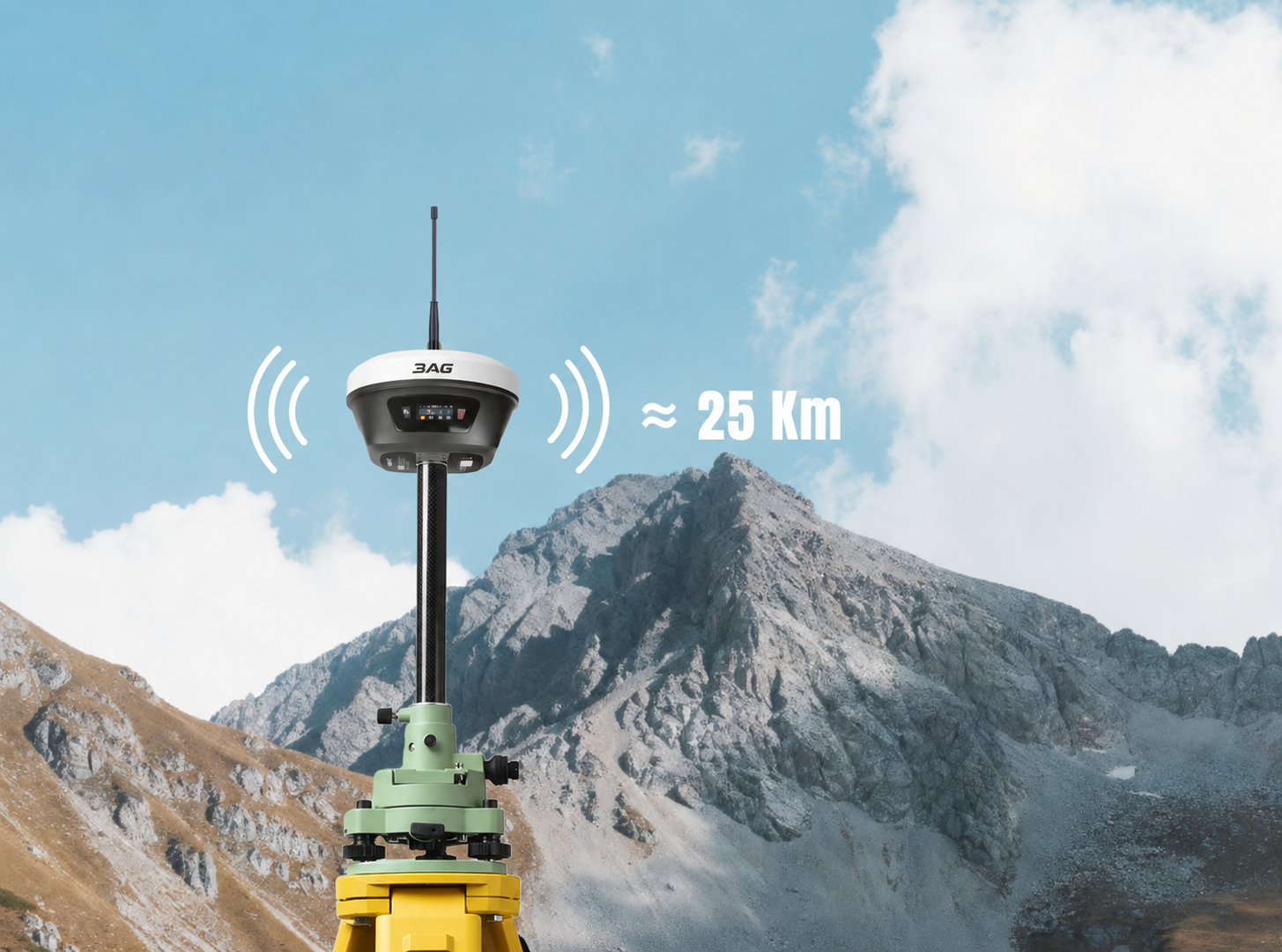

Long Range Radio
Designed as a dedicated base station, Banff-BASE integrates a top-mounted antenna and built-in long range radio to reach up to 25 kilometers in ideal conditions, supporting mainstream protocols and features and an internal 4G module enabling both radio-based and RTK operation.

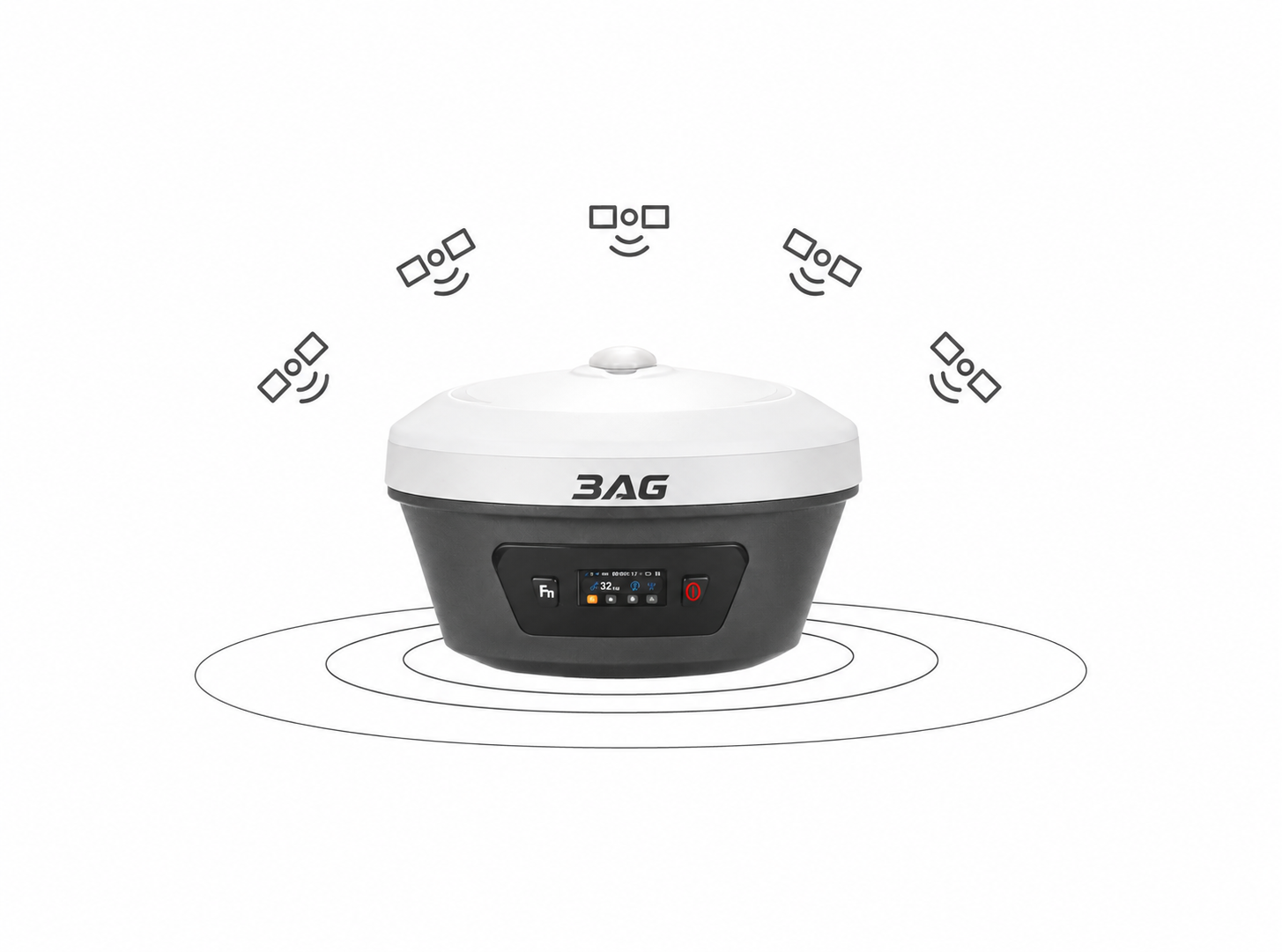

Constellation
Supporting full constellation GPS, GLONASS, Galileo, BeiDou, IRNSS (NavIC), QZSS with strong anti-interference performance.

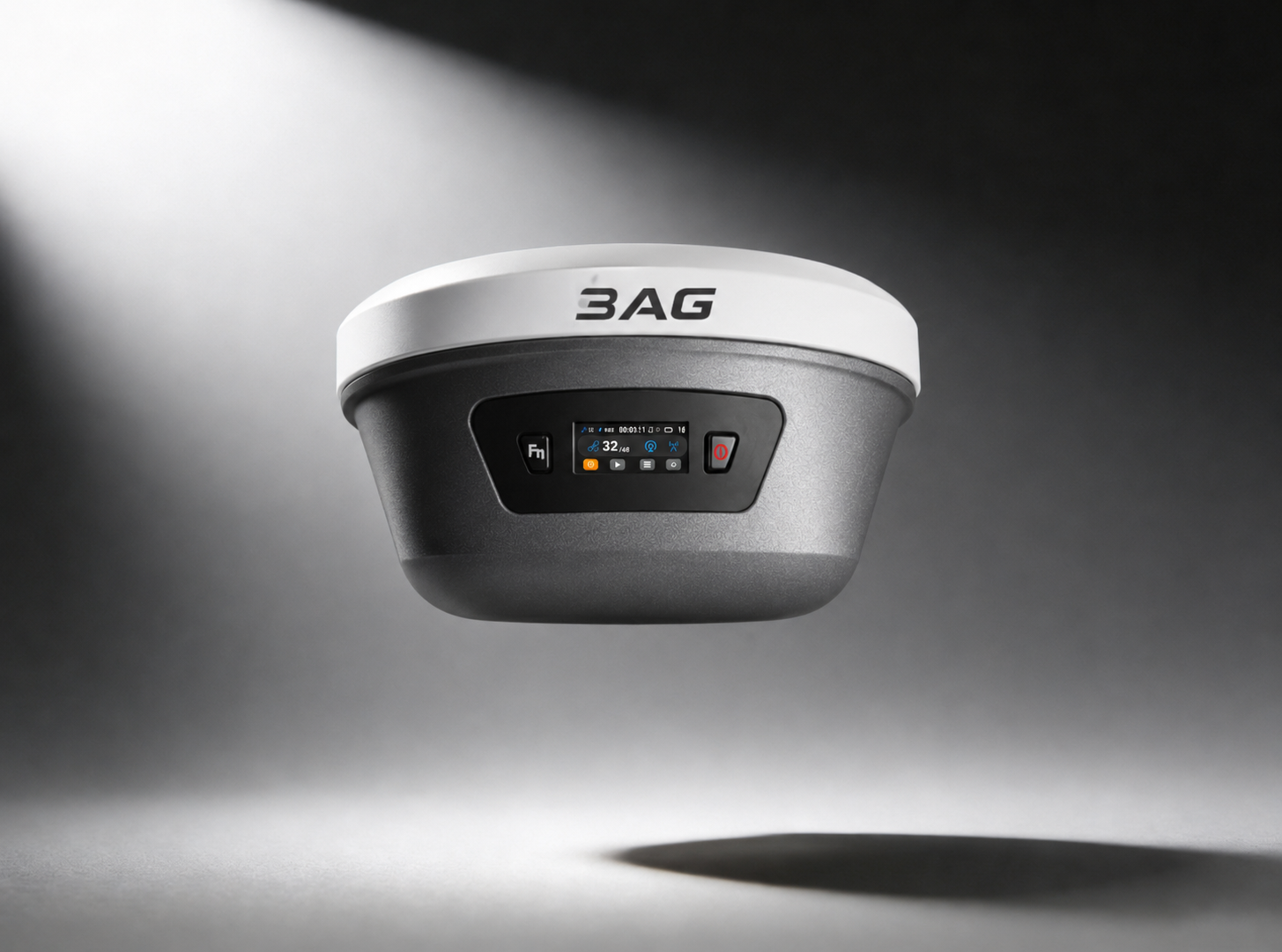

HD Colour Screen
One point one inch front display provides status visibility and simple configuration access.
Specifications
Technical detail.
- Channels
- 1408
- BDS
- B1I, B2I, B3I, B1C, B2a, B2b
- GPS
- L1C/A, L1C, L2C, L2P(Y), L5
- GLONASS
- G1, G2, G3
- Galileo
- E1, E5a, E5b, E6
- QZSS
- L1C/A, L1C, L2C, L5
- RTK Initialization Time
- < 5 s (typical)
- RTK Accuracy
- 8 mm + 1 ppm Horizontally, 15 mm + 1 ppm Vertically
- Re-acquisition
- < 1 s
